EA DIP162-DHNLED | DISPLAY VISIONS

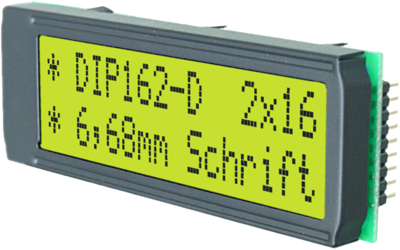

LCD text display, 2 x 16 character, STN, viewing area: 61 x 19 mm, EA DIP162-DHNLED
Unit Price (€ / pc.)
28.0721 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
28.07 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0721 €
5 pcs.
26.3942 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD modules, 2 x 16, type EA DIP162.
With controller (HD44780 compatible), rich-contrast supertwist LCD, program with fixed set of 192 or 240 ASCII characters, 8 additional characters for user programs, connection to 4-bit or 8-bit data bus,yellow/green backlight, integrated temperature compensation, for PCB assembly or pluggable by means of optional socket strips (2 required).
font height: 6.68 mm
Character set: program with fixed set of 192 characters, 8 characters for user specific programming
Supply voltage: ±2.7 V, ±3.3 V or +5.0 V
Operating temperatures: - 20 to +70°C
Dimensions: 75 x 26.8 x 10.8 mm
Table index: type, color (font, backlight)
Type: EA DIP162 - DHNLED, black, yellow/green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 2 x 16 character | |
| Viewing area (width) | 61 mm | |
| Viewing range (height) | 19 mm | |
| Technology | STN | |
| max. operating temperature | 70 °C | |
| Height | 26.8 mm | |
| type of backlight | LED - yellow green | |
| IC controller/driver | HD44780 compatible | |
| Width | 68 mm | |
| min. operating temperature | -20 °C | |
| Background color | green | |
| Thickness | 10.8 mm | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
