EA DIP128J-6N5LW | DISPLAY VISIONS

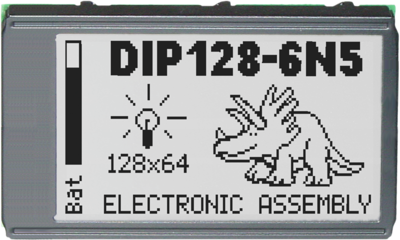

Graphic display, 128 x 64 character, FSTN, viewing area: 61 x 38 mm, EA DIP128J-6N5LW
Unit Price (€ / pc.)
58.5004 € *
Available: 1 pcs.
Graphic displays 128 x 64, type EA DIP128.
Very bright and high contrast. Controllable lighting, with controller, connection to 8-bit data bus, backlit (requires external series resistor), for PCB mounting, optional plug-in installation with socket strips (2 items required).
Operating temperatures: - 20 to +70 °C, with temperature compensation
Supply voltage: +5.0 V
Dimensions: 75 x 45.8 x 10.8 mm
Font color: black
Backlight color: white
Type: EA DIP128J - 6N5LW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 61 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 458 mm | |
| Technology | FSTN | |
| Thickness | 10.8 mm | |
| IC controller/driver | PT6607/08 compatible | |
| MPU interface | 8-Bit | |
| Width | 75 mm | |
| Display | 128 x 64 character | |
| Background color | white | |
| Viewing range (height) | 38 mm | |
| type of backlight | LED - white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
