EA 8081-A3N | DISPLAY VISIONS

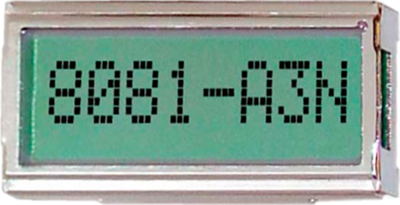

LCD text display, 1 x 8 character, STN, viewing area: 36.3 x 13.9 mm, EA 8081-A3N
Unit Price (€ / pc.)
17.7310 € *
Available: 20 pcs.
Total Price:
17.73 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7310 €
10 pcs.
15.9460 €
100 pcs.
14.3990 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD text displays, type Electronic Assembly EA.
With controller (HD44780 compatible), rich-contrast supertwist LCD, program with fixed set of 192 or 240 ASCII characters, 8 additional characters for user programs, connection to 4-bit or 8-bit data bus.
LCD modules 1 x 8, type EA 8081.
Font height: 7.15 mm. Character set: program with fixed set of 192 characters, 8 additional characters for user programs. For PCB mounting. Supply voltage: +5.0 V. Operating temperatures: 0 to +50 °C. Dimensions: 40 x 20 x 7.8 mm.
Type: EA 8081–A3N, LCD text module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 1 x 8 character | |
| Viewing area (width) | 36.3 mm | |
| Viewing range (height) | 13.9 mm | |
| Technology | STN | |
| max. operating temperature | 50 °C | |
| Height | 20 mm | |
| type of backlight | without | |
| Width | 40 mm | |
| min. operating temperature | 0 °C | |
| Background color | gray | |
| Thickness | 7.8 mm | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
