EA W204-XLG | DISPLAY VISIONS

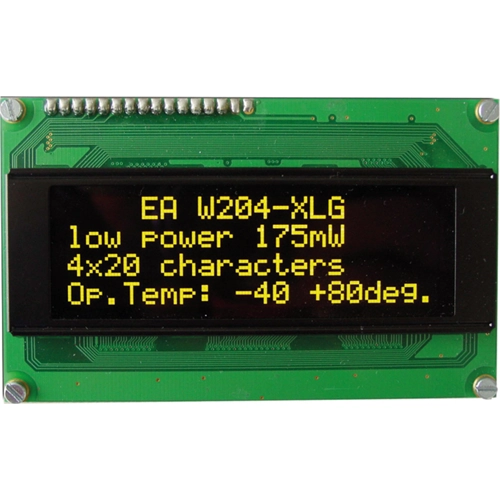

OLED display including controller, EA W204-XLG

Order No.: 73S1636
EAN: 4099879006646
MPN:
EA W204-XLG
Series: EA W20
DISPLAY VISIONS
EA W204-XLG DISPLAY VISIONS LED Indicators
Image may differ
Unit Price (€ / pc.)
49.3493 € *
Available: 20 pcs.
Leadtime: 1 Week **
Total Price:
49.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
49.3493 €

OLED displays, including controller, type DISPLAY VISIONS EA W082-XLG.

Features: input 4- or 8-bit data bus, 3 control lines (R/W, E, RS), 3 integrated fonts (8-bit mode), ASCII character set and special characters in character ROM, up to 8 characters (ASCII code 0..7) are available for user definition. Functions programmable by command input: Clear Display, Cursor Home, Cursor ON/OFF, Blinking Cursor, Shift Display, Shift Cursor, Read/Write Display Data, etc. Power supply: 3.3 to 5.0 V. Current consumption: 15 to 50 mA. Operating temperatures: –40 to +80 °C. Display: 2 lines/8 characters. Font height: 5.5 mm. Module dimensions: 58 x 32 x 10 mm. Visible area: 38 x 16 mm.

OLED displays, including controller, type EA W204-XLG.

Display: 4 rows/20 characters. Font height: 5.5 mm. Module dimensions: 98 x 60 x 10 mm. Visible area: 70 x 25.2 mm.

Technical attributes (type, font color): EA W204-XLG, yellow-green

Technical specifications
Display 20 x 4 character
Viewing area (width) 77 mm
Viewing range (height) 25.2 mm
Width 98 mm
Thickness 10 mm
type of backlight without
Background color yellow/green
Height 60 mm
IC controller/driver HD44780 compatible
max. operating temperature 80 °C
min. operating temperature -40 °C
MPU interface 8-Bit
Technology OLED
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
