EA LED94X40-A | DISPLAY VISIONS
LED BL EA LED94x40-A
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 1 Week

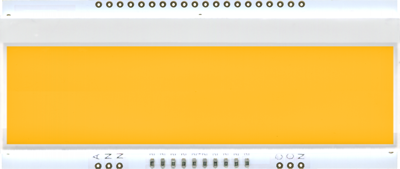

LED backlighting, EA LED94X40-A, DISPLAY VISIONS
The EA LED94X40-A (Amber) is a cost-effective module featuring an amber backlight. It contains three separate LED paths, each with four LEDs that can be configured either in parallel or in series to match the system’s supply voltage. The typical lifetime is approximately 100,000 hours.
Features
- Controller Uc1611s With Integrated Grafic-Ram
- High-contrast LCD Supertwist Display (Stn And Fstn) With 15µm Dot Gap
- No Additional Voltages Required
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 94 x 40.2 x 3.6 mm | |
| Viewing area (width) | 90 mm | |
| Viewing range (height) | 23.8 mm | |
| type of backlight | LED | |
| Background color | amber | |
| Thickness | 3.6 mm | |
| Width | 94 mm | |
| Height | 40.2 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85319000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
