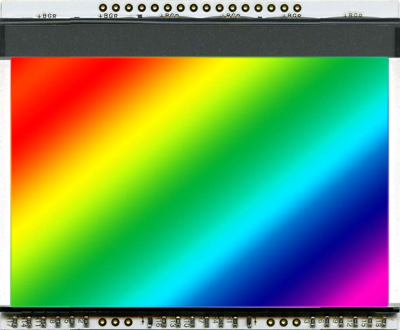

EA LED78X64-RGB | DISPLAY VISIONS

LED B/L for EA DOGXL160, full colorAH

Order No.: 73S2333
MPN:
EA LED78X64-RGB
EA LED78X64-RGB DISPLAY VISIONS Displays LED Backlight
Image may differ
Unit Price (€ / pc.)
42.6496 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
42.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
42.6496 €

LED backlight, EA LED78X64-RGB, DISPLAY VISIONS

LED backlight (3 colors) for EA DOGXL160-7; colors: red, green and blue. Supply voltage typ. 4V via ext. series resistor. Color can be set by 3 different input pathes. With the help of an external PWM also mixed colors may be generated.

Technical specifications
Filter Property Value
max. operating temperature 70 °C
Viewing range (height) 45.6 mm
Width 78 mm
Height 64 mm
type of backlight LED
Viewing area (width) 72 mm
Thickness 4.2 mm
min. operating temperature -20 °C
Background color RGB
Logistics
Property Value
Country of origin CN
Customs tariff number 85312095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
