LED backlight EA LED68x51-G, yellow/green, 60 mA
Unit Price (€ / pc.)
9.8175 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
8.6394 €
50 pcs.
8.0563 €
150 pcs.
7.6993 €
500 pcs.
7.2947 €
*incl. VAT plus shipping costs
Subject to prior sale

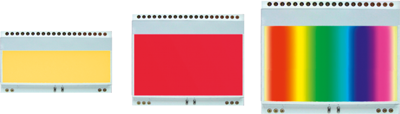

LED backlights, type EA LED.
For individual illumination of the graphic LCDs, DOGL128..-6.
Supply voltage: +3.3 V or +5.0 V
Color: yellow/green
max. current consumption: 60 mA
LED backlights for Dimensions: 68 x 51 x 3.6 mm
Type: EA LED68x51 - G
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 64 mm | |
| Viewing range (height) | 35.5 mm | |
| max. operating temperature | 70 °C | |
| Height | 51 mm | |
| type of backlight | LED | |
| min. operating temperature | -20 °C | |
| Background color | yellow/green | |
| Thickness | 4.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85319000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
