EA LED55X46-R | DISPLAY VISIONS
LED backlight EA LED55X46-R, red, 40 mA
Unit Price (€ / pc.)
4.165 € *
Standard delivery time from the manufacturer is: 1 Week

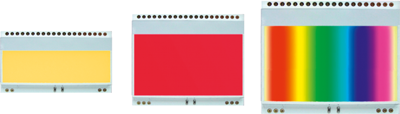

LED backlights, type EA LED.
For individual illumination of the graphic LCDs DOGM128..-6.
Supply voltage: +3.3 V or +5.0 V
Color: red
max. current consumption: 40 mA
LED backlights for Dimensions: 55 x 46 x 3.6 mm
Type: EA LED55X46 - R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Background color | red | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing range (height) | 31 mm | |
| type of backlight | LED | |
| Height | 46 mm | |
| Width | 55 mm | |
| Viewing area (width) | 51 mm | |
| Thickness | 4.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85319000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
