EA LED55X46-A | DISPLAY VISIONS
LED backlight EA LED55X46-A, amber, 40 mA
Unit Price (€ / pc.)
6.2475 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.25 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2475 €
10 pcs.
5.4978 €
100 pcs.
4.8314 €
250 pcs.
4.6291 €
1000 pcs.
4.3316 €
*incl. VAT plus shipping costs
Subject to prior sale

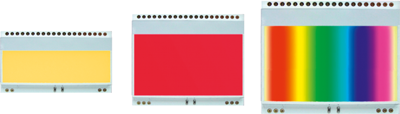

LED backlights, type EA LED.
For individual illumination of the graphic LCDs DOGM128..-6.
Supply voltage: +3.3 V or +5.0 V
Color: amber
max. current consumption: 40 mA
LED backlights forDimensions: 55 x 46 x 3.6 mm
Type: EA LED55X46 - A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 51 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 46 mm | |
| Thickness | 4.2 mm | |
| Background color | amber | |
| Viewing range (height) | 31 mm | |
| type of backlight | LED | |
| Light intensity min. | 700 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85319000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
