DEM 800480S1 TMH-PW-N | Display Elektronik

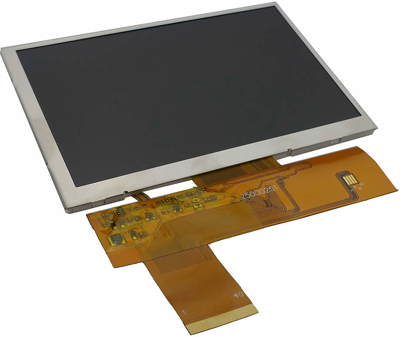

TFT module, 5"/12.7 cm, 800 x 480, DEM 800480S1 TMH-PW-N

Order No.: 73S0448
EAN: 4099891980139
MPN:
DEM 800480S1 TMH-PW-N
DEM 800480S1 TMH-PW-N Display Elektronik TFT Displays
Image may differ
Unit Price (€ / pc.)
69.3175 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,386.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
69.3175 €

TFT Module, DEM 800480S1 TMH-PW-N, Display Elektronik

DEM 800480S1 TMH-PW-N is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. Graphics and texts can be displayed on a WVGA 800 (W) x 3 x 480 (H) dots (15:9 aspect ratio) with 16.7M colors by supplying 24 bits data signal (8 bits/ each color).

Features

  • TN (Twisted Nematic) mode
  • Digital RGB (6bits/color) Data Transfer
  • Data Enable Mode
  • RoHS Compliant
Technical specifications
Viewing area (width) 64.8 mm
Technology TN - transmissive
Shell size 118.5 x 77.55 x 3.55 mm
Product type TFT module
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 800 x 480
screen diagonal 5"/12.7 cm
Viewing range (height) 108 mm
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
