DEM 800480A TMX-PW-N | Display Elektronik

TFT module, 7"/17.8 cm, 800 x 480, DEM 800480A TMX-PW-N

Order No.: 73S0396
EAN: 4099891979614
MPN:
DEM 800480A TMX-PW-N
DEM 800480A TMX-PW-N Display Elektronik TFT Displays

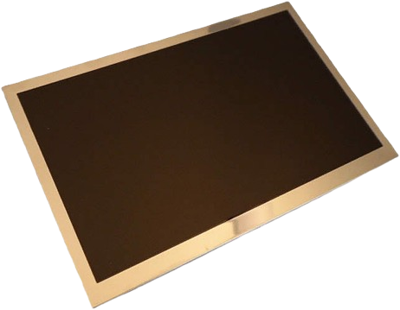

Image may differ
Unit Price (€ / pc.)
114.3828 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2,287.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
114.3828 €

LCD Module, DEM 800480A TMX-PW-N, Display Elektronik

DEM 800480A TMX-PW-N is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. Graphics and texts can be displayed on a WVGA 800 (W) x RGB x 480 (H) dots (16:9 aspect ratio) with 262,144 colors by supplying 18 bits data signal (6bits/each color).

Features

  • TN (Twisted Nematic) mode
  • Digital RGB (6bits/color) data transfer
  • Data enable mode
  • RoHS Compliant
Technical specifications
max. operating temperature 85 °C
screen diagonal 7"/17.8 cm
Resolution 800 x 480
Viewing range (height) 152.4 mm
Viewing area (width) 91.44 mm
Technology TN - transmissive
min. operating temperature -30 °C
Shell size 166.6 x 109.4 x 9.65 mm
Product type TFT module
Logistics
Customs tariff number 85249100
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
