DEM 640480F TMH-PW-N | Display Elektronik

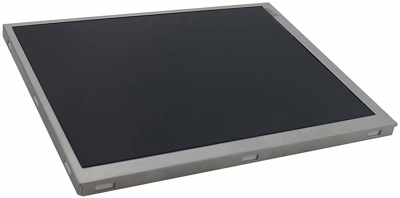

TFT module, 5.7"/14.5 cm, 640 x 480, DEM 640480F TMH-PW-N

Order No.: 73S0387
EAN: 4099891979522
MPN:
DEM 640480F TMH-PW-N
DEM 640480F TMH-PW-N Display Elektronik TFT Displays
Image may differ
Unit Price (€ / pc.)
111.3959 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,341.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 pcs.
111.3959 €

LCD Module, DEM 640480F TMH-PW-N, Display Elektronik

Features

  • LCD Type: TFT/Transmissive
  • Viewing Direction: 6 O'Clock
  • Backlight type: 21-Dies White LED
  • Interface type: 18 BIT RGB
Technical specifications
Viewing area (width) 86.4 mm
Technology TN - transmissive
Shell size 127 x 98.43 x 5.8 mm
Product type TFT module
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 640 x 480
screen diagonal 5.7"/14.5 cm
Viewing range (height) 115.2 mm
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
