DEM 480272L TMH-PW-N (C-TOUCH) | Display Elektronik

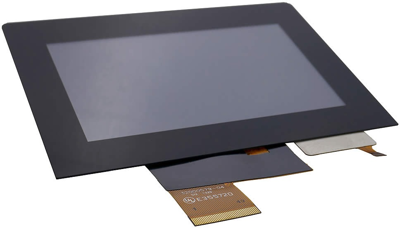

TFT display, 4.3"/10.9 cm, with touch function, 480 x 272, DEM 480272L TMH-PW-N (C-TOUCH)
Order No.: 71S993
EAN: 4099879007124
MPN:
DEM 480272L TMH-PW-N (C-TOUCH)
Unit Price (€ / pc.)
48.4449 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
48.44 € *
Price list
Quantity
Price per unit*
1 pcs.
48.4449 €
3 pcs.
46.2553 €
5 pcs.
44.2561 €
10 pcs.
43.0066 €
*incl. VAT plus shipping costs
Subject to prior sale
TFT module, DEM 480272L TMH-PW-N (C-TOUCH), Display Electronic
DEM 480272L TMH-PW-N (C-TOUCH) is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
Features
- Transmissive and back-light with 9 LEDs are available
- Twisted Nematic mode
- Digital RGB 24 bit/18 bit Interface
Technical specifications
| Product type | TFT display | |
| Version | with touch function | |
| Resolution | 480 x 272 | |
| screen diagonal | 4.3"/10.9 cm | |
| Viewing range (height) | 53.86 mm | |
| Viewing area (width) | 95.04 mm | |
| Technology | TN - transmissive | |
| Shell size | 125 x 86 x 4.3 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 315 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
