DEM 480128C TMH-PW-N | Display Elektronik

TFT display, 5.2"/13.2 cm, 480 x 128, DEM 480128C TMH-PW-N

Order No.: 71S984
EAN: 4099879007087
MPN:
DEM 480128C TMH-PW-N
DEM 480128C TMH-PW-N Display Elektronik TFT Displays
Image may differ
Unit Price (€ / pc.)
60.095 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,644.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
44 pcs.
60.095 €

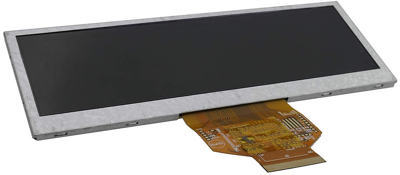

TFT-Display, DEM 480128C TMH-PW-N, Display Elektronik

This TFT is a 5.2 TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching device.

Features

  • Size: 5.2 Inch.
  • Display resolution: 480 x RGB x 128 Dots.
  • Digital RGB: 24 bit Interface.
  • View direction: 6 O'clock.
Technical specifications
Viewing area (width) 127.15 mm
Technology TN - transmissive
Shell size 140.4 x 49.87 x 3 mm
Product type TFT display
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 480 x 128
screen diagonal 5.2"/13.2 cm
Viewing range (height) 33.91 mm
Logistics
Country of origin CN
Customs tariff number 85249100
MSL MSL 1
Original Packaging Tray with 44 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
