DEM 412960A VMH-PW-N | Display Elektronik

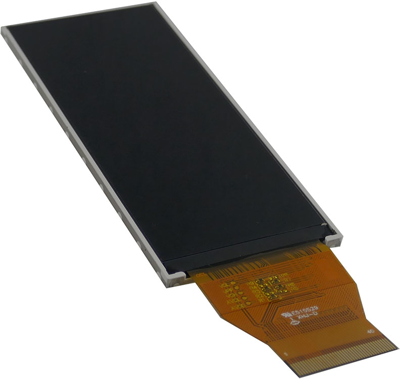

TFT module, 3.4"/8.63 cm, 412 x 960, DEM 412960A VMH-PW-N
Order No.: 73S0342
EAN: 4099891979072
MPN:
DEM 412960A VMH-PW-N
Unit Price (€ / pc.)
13.3637 € *
Standard delivery time from the manufacturer is: 1 Week
TFT Module, DEM 412960A VMH-PW-N, Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
Technical specifications
| max. operating temperature | 70 °C | |
| screen diagonal | 3.4"/8.63 cm | |
| Resolution | 412 x 960 | |
| Viewing range (height) | 33.99 mm | |
| Viewing area (width) | 79.2 mm | |
| Technology | IPS - transmissive | |
| min. operating temperature | -20 °C | |
| Shell size | 38.14 x 87.82 x 2.55 mm | |
| Product type | TFT module |
Download
Logistics
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
