DEM 320240U VMX-PW-N | Display Elektronik

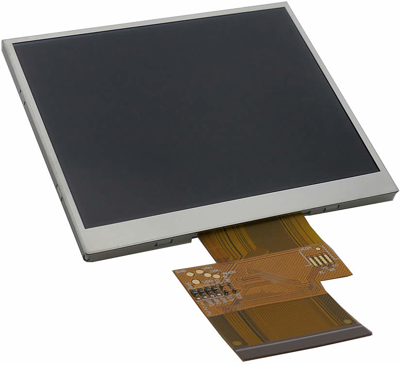

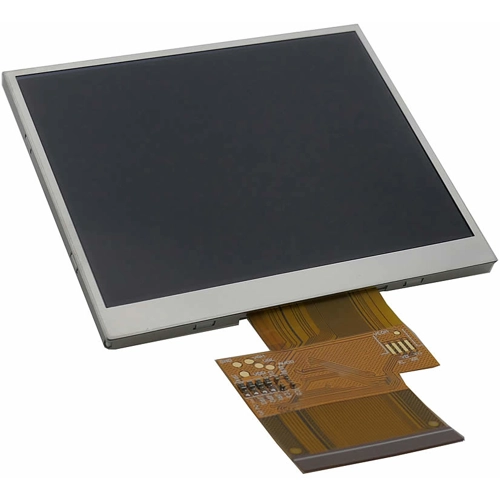

TFT module, 3.5"/8.9 cm, 320 x 240, DEM 320240U VMX-PW-N
Order No.: 73S0332
EAN: 4099891978976
MPN:
DEM 320240U VMX-PW-N
Unit Price (€ / pc.)
37.1399 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Module, DEM 320240U VMX-PW-N, Display Elektronik
DEM 320240U VMX-PW-N is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. Graphics and texts can be displayed on a 320 (W) x RGB x 240 (H) dots with 16.7M colors by supplying 24 bits data signal.
Features
- Transmissive and back-light
- IPS mode
- RoHS Compliant
Technical specifications
| Viewing area (width) | 52.56 mm | |
| Technology | IPS - transmissive | |
| Shell size | 76.9 x 63.9 x 3.15 mm | |
| Product type | TFT module | |
| min. operating temperature | -30 °C | |
| max. operating temperature | 85 °C | |
| Resolution | 320 x 240 | |
| screen diagonal | 3.5"/8.9 cm | |
| Viewing range (height) | 70.08 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
