DEM 320240J TMH-PW-N | Display Elektronik

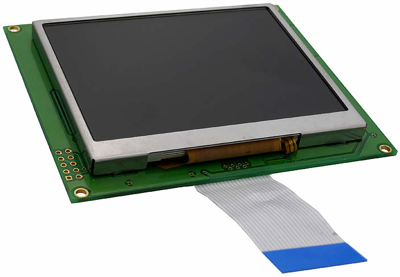

TFT module, 3.5"/8.9 cm, 320 x 240, DEM 320240J TMH-PW-N

Order No.: 73S0318
EAN: 4099891978839
MPN:
DEM 320240J TMH-PW-N
DEM 320240J TMH-PW-N Display Elektronik TFT Displays
Image may differ
Unit Price (€ / pc.)
12.3760 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
408.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
33 pcs.
12.3760 €

LCD Module, DEM 320240J TMH-PW-N, Display Elektronik

Features

  • LCD Mode: Normally White, Transmissive
  • Viewing Direction: 6 O’clock
  • Backlight Color: White (LED)
  • LCM Brightness: 200 nit
Technical specifications
Viewing area (width) 55.8 mm
Technology TN - transmissive
Shell size 92 x 78.4 x 10.5 mm
Product type TFT module
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 320 x 240
screen diagonal 3.5"/8.9 cm
Viewing range (height) 73.3 mm
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
