DEM 320240A1 TMH-PW-N | Display Elektronik

TFT module, 3.5"/8.9 cm, 320 x 240, DEM 320240A1 TMH-PW-N

Order No.: 73S0307
EAN: 4099891978723
MPN:
DEM 320240A1 TMH-PW-N
DEM 320240A1 TMH-PW-N Display Elektronik TFT Displays

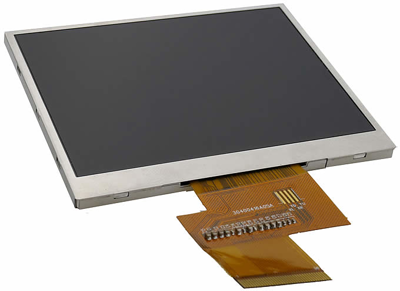

Image may differ
Unit Price (€ / pc.)
30.9519 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,249.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
105 pcs.
30.9519 €

TFT Module, DEM 320240A1 TMH-PW-N, Display Elektronik

Features

  • LCD Type: TFT/Transmissive
  • Viewing Direction: 12:00 O'clock
  • Top polarizer type: Anti-glare
  • Backlight type: 6-Dies White LED
  • Interface type: 18-Bit-MCU
Technical specifications
Viewing area (width) 52.56 mm
Technology TN - transmissive
Shell size 76.9 x 63.9 x 3.3 mm
Product type TFT module
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 320 x 240
screen diagonal 3.5"/8.9 cm
Viewing range (height) 70.08 mm
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
