DEM 268800A VMH-PW-N | Display Elektronik

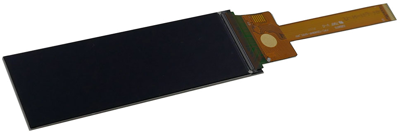

TFT module, 2.99"/7.6 cm, 268 x 800, DEM 268800A VMH-PW-N

Order No.: 73S0304
EAN: 4099891978693
MPN:
DEM 268800A VMH-PW-N
DEM 268800A VMH-PW-N Display Elektronik TFT Displays
Image may differ
Unit Price (€ / pc.)
14.8631 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,210.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
216 pcs.
14.8631 €

TFT Module, DEM 268800A VMH-PW-N, Display Elektronik

Features

  • Active Area: 24.12 x 72.00
  • Viewing Direction: Free
  • Pixel Arrangement: RGB Vertical Stripe
  • Backlight: LED, White, Backlight
  • Interface type: MIPI Interface
Technical specifications
Viewing area (width) 72 mm
Technology IPS - transmissive
Shell size 29.96 x 80.08 x 1.68 mm
Product type TFT module
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 268 x 800
screen diagonal 2.99"/7.6 cm
Viewing range (height) 24.12 mm
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
