DEM 240320T TTH-PW-N | Display Elektronik

TFT module, 2.4"/6.1 cm, 240 x 320, DEM 240320T TTH-PW-N

Order No.: 73S0303
EAN: 4099891978686
MPN:
DEM 240320T TTH-PW-N
DEM 240320T TTH-PW-N Display Elektronik TFT Displays

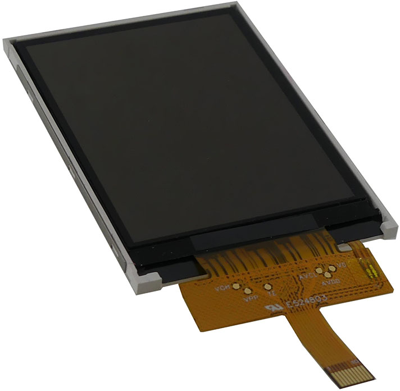

Image may differ
Unit Price (€ / pc.)
13.0781 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2,746.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
210 pcs.
13.0781 €

TFT Module, DEM 240320T TTH-PW-N, Display Elektronik

The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit. This TFT Module is having an universal interface pin layout to access all relevant interfaces of the TFT Driver IC. It allows to be flexible in case of TFT diver IC changes.

Technical specifications
Filter Property Value
Resolution 240 x 320
Viewing area (width) 48.96 mm
max. operating temperature 70 °C
min. operating temperature -20 °C
Technology TN - Transflective
Shell size 42.72 x 60.26 x 2.3 mm
Product type TFT module
Viewing range (height) 36.72 mm
screen diagonal 2.4"/6.1 cm
Logistics
Property Value
Customs tariff number 85249100
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
