DEM 240320A3 TMH-PW-N | Display Elektronik

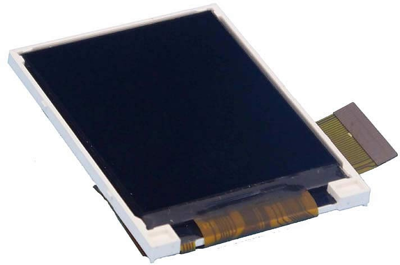

TFT display, 2.2"/5.6 cm, 240 x 320, DEM 240320A3 TMH-PW-N
Order No.: 71S956
EAN: 4099879007001
MPN:
DEM 240320A3 TMH-PW-N
Unit Price (€ / pc.)
16.8028 € *
Standard delivery time from the manufacturer is: 1 Week
TFT-Display, DEM 240320A3 TMH-PW-N, Display Elektronik
This 2.2 TFT is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
Features
- Size: 2.2 Inch.
- Display resolution: 320 x RGB x 240 Dots.
- Module size: 40.3 x 58.1 x 2.85.
- View direction: 6 O'clock.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 240 x 320 | |
| Viewing area (width) | 33.48 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TN - transmissive | |
| Shell size | 40.3 x 58.1 x 2.85 mm | |
| Product type | TFT display | |
| Viewing range (height) | 44.64 mm | |
| screen diagonal | 2.2"/5.6 cm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 180 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
