DEM 240240A1 VMH-PW-N | Display Elektronik
TFT module, 1.54"/3.91 cm, 240 x 240, DEM 240240A1 VMH-PW-N
Order No.: 73S0277
EAN: 4099891978426
MPN:
DEM 240240A1 VMH-PW-N
Unit Price (€ / pc.)
8.4371 € *
Standard delivery time from the manufacturer is: 1 Week

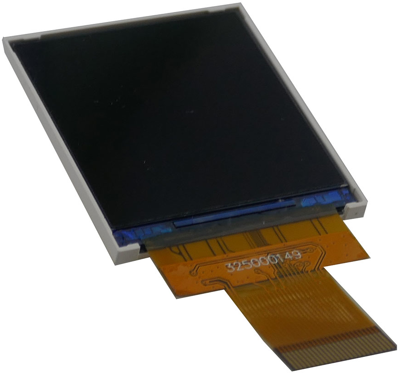

TFT Module, DEM 240240A1 VMH-PW-N, Display Elektronik
This TFT is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It iscomposed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 240x240 pixels and can display up to 262K colors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 240 x 240 | |
| Viewing area (width) | 27.72 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | IPS - transmissive | |
| Shell size | 31.5 x 35 x 2.3 mm | |
| Product type | TFT module | |
| Viewing range (height) | 27.72 mm | |
| screen diagonal | 1.54"/3.91 cm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
