DEM 128128A2 TMH-PW-N | Display Elektronik
TFT module, 1.44"/3.65 cm, 128 x 128, DEM 128128A2 TMH-PW-N
Order No.: 73S0269
EAN: 4099891978341
MPN:
DEM 128128A2 TMH-PW-N
Unit Price (€ / pc.)
10.6981 € *
Available: 5 pcs.
Total Price:
10.70 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6981 €
392 pcs.
7.4256 €
*incl. VAT plus shipping costs
Subject to prior sale

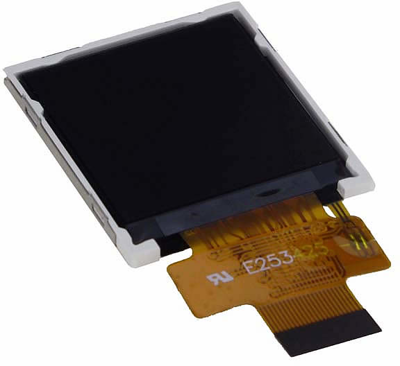

TFT Module, DEM 128128A2 TMH-PW-N, Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver IC and a backlight unit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 30.7 x 36 x 2.7 mm | |
| Product type | TFT module | |
| screen diagonal | 1.44"/3.65 cm | |
| max. operating temperature | 70 °C | |
| Resolution | 128 x 128 | |
| min. operating temperature | -20 °C | |
| Technology | TN - transmissive | |
| Viewing area (width) | 25.6 mm | |
| Viewing range (height) | 25.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
