DEM 122250A VRH-FW-N | Display Elektronik

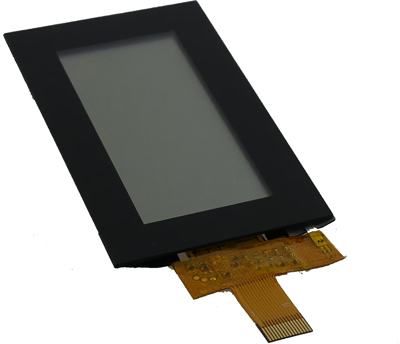

TFT module, 2.12"/5.38 cm, 122 x 250, DEM 122250A VRH-FW-N
Order No.: 73S0268
EAN: 4099891978334
MPN:
DEM 122250A VRH-FW-N
Unit Price (€ / pc.)
18.2308 € *
Standard delivery time from the manufacturer is: 1 Week
TFT Module, DEM 122250A VRH-FW-N, Display Elektronik
The specification is a reflective type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a Frontlight Unit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 122 x 250 | |
| Viewing area (width) | 48.5 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TN - Reflective | |
| Shell size | 40.27 x 65.1 x 2.49 mm | |
| Product type | TFT module | |
| Viewing range (height) | 23.67 mm | |
| screen diagonal | 2.12"/5.38 cm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
