DEM 1024768B VM-PW-N | Display Elektronik

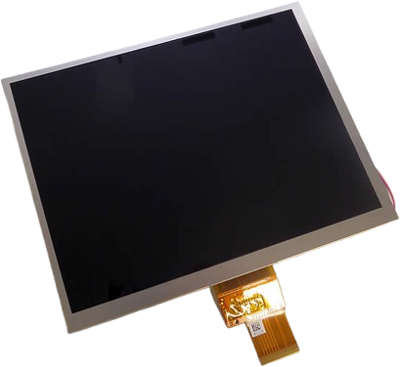

TFT module, 8"/20.32 cm, 1024 x 768, DEM 1024768B VM-PW-N
Order No.: 73S0508
EAN: 4099891980733
MPN:
DEM 1024768B VM-PW-N
Unit Price (€ / pc.)
108.9326 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 1024768B VM-PW-N, Display Elektronik
This TFT is applied to the 8 Inch XGA 1024 x RGB x 768 Dots (4:3 Aspect Ratio) supported TFT-LCD module and can display true 16.7 Million colors (8 Bit/Color).The module is designed for OA, Car TV application and other electronic products which require flat panel display of digital signal interface. This module is composed of a 8î TFT-LCD panel, a driver circuit and backlight unit.
Features
- LVDS Receiver 6/8 Bit Interface
- RoHS Compliant
Technical specifications
| max. operating temperature | 50 °C | |
| screen diagonal | 8"/20.32 cm | |
| Resolution | 1024 x 768 | |
| Viewing range (height) | 162.05 mm | |
| Viewing area (width) | 121.54 mm | |
| Technology | IPS - transmissive | |
| min. operating temperature | -10 °C | |
| Shell size | 175.7 x 137.85 x 5.6 mm | |
| Product type | TFT module |
Download
Logistics
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
