DEM 096096A VMH-PW-N | Display Elektronik
TFT module, 1.1"/2.8 cm, 96 x 96, DEM 096096A VMH-PW-N
Order No.: 73S0265
EAN: 4099891978303
MPN:
DEM 096096A VMH-PW-N
Unit Price (€ / pc.)
8.9131 € *
Available: 5 pcs.
Leadtime: 1 Week **
Total Price:
8.91 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9131 €
392 pcs.
7.4256 €
*incl. VAT plus shipping costs
**Subject to prior sale

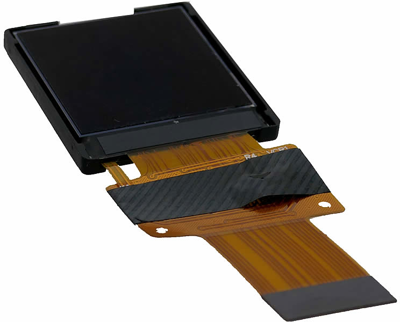

TFT Module, DEM 096096A VMH-PW-N, Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver IC and a backlight unit.
Technical specifications
| Viewing area (width) | 19.87 mm | |
| Technology | IPS - transmissive | |
| Shell size | 25.37 x 28.15 x 2.4 mm | |
| Product type | TFT module | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Resolution | 96 x 96 | |
| screen diagonal | 1.1"/2.8 cm | |
| Viewing range (height) | 19.87 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
