DEM 080160A VMH-PW-N | Display Elektronik

TFT module, 0.96"/2.4 cm, 80 x 160, DEM 080160A VMH-PW-N

Order No.: 73S0258
EAN: 4099891978235
MPN:
DEM 080160A VMH-PW-N
DEM 080160A VMH-PW-N Display Elektronik TFT Displays

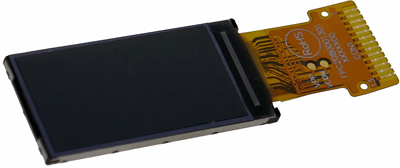

Image may differ
Unit Price (€ / pc.)
7.9254 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
317.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
40 pcs.
7.9254 €

TFT Module, DEM 080160A VMH-PW-N, Display Elektronik

DEM 080160A VMH-PW-N is a color active matrix thin film transistor (TFT) liquid crystal empty cell. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive IPS type display operating in the normally black mode. This TFT LCD has a 0.96-inch diagonally measured active display area with 80 x 160 dot (80 horizontal by 160 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.

Technical specifications
Filter Property Value
screen diagonal 0.96"/2.4 cm
max. operating temperature 70 °C
Shell size 13.5 x 27.95 x 1.54 mm
Technology IPS - transmissive
Viewing range (height) 10.8 mm
Resolution 80 x 160
Viewing area (width) 21.7 mm
Product type TFT module
min. operating temperature -20 °C
Logistics
Property Value
Country of origin CN
Customs tariff number 85249100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
