DEM 080160A VMH-PW-N (C-TOUCH) | Display Elektronik

TFT module, 0.96"/2.4 cm, with touch function, 80 x 160, DEM 080160A VMH-PW-N (C-TOUCH)

Order No.: 73S0259
EAN: 4099891978242
MPN:
DEM 080160A VMH-PW-N (C-TOUCH)
DEM 080160A VMH-PW-N (C-TOUCH) Display Elektronik TFT Displays

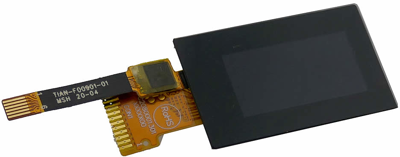

Image may differ
Unit Price (€ / pc.)
19.8016 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,960.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
200 pcs.
19.8016 €

TFT Module, DEM 080160A VMH-PW-N (C-TOUCH), Display Elektronik

DEM 080160A VMH-PW-N(C-TOUCH) is a color active matrix thin film transistor (TFT) liquid crystal empty cell. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally black mode. This TFT LCD has a 0.96-inch diagonally measured active display area with 80 X 160 dot (80 horizontal by 160 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.

Technical specifications
Product type TFT module
Version with touch function
Resolution 80 x 160
screen diagonal 0.96"/2.4 cm
Viewing range (height) 10.8 mm
Viewing area (width) 21.7 mm
Technology IPS - transmissive
Shell size 18.7 x 31.9 x 2.64 mm
min. operating temperature -20 °C
max. operating temperature 70 °C
Logistics
Country of origin CN
Customs tariff number 85249100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
