DEP 256064C-W | Display Elektronik

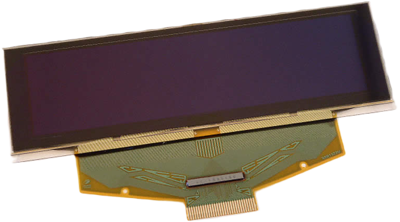

OLED display, 256 x 64 dots, 88 x 27.8 x 2.05 mm, white, Display Elektronik DEP 256064C-W
Order No.: 73S0253
EAN: 4099891978181
MPN:
DEP 256064C-W
Unit Price (€ / pc.)
44.5655 € *
Standard delivery time from the manufacturer is: 1 Week
OLED Module, DEP 256064C-W, Display Elektronik
Features
- Active Area: 76.778 x 19.178 mm
- Display Mode: Passive Matrix
- Duty: 1/64
- Display Color: White
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 76.78 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Height | 27.8 mm | |
| Technology | OLED | |
| Thickness | 2.05 mm | |
| Shell size | 88 x 27.8 x 2.05 mm | |
| IC controller/driver | SSD1322 compatible | |
| MPU interface | 8-Bit-MCU, SPI | |
| Width | 88 mm | |
| Lifetime | 20.000 hours | |
| Display | 256 x 64 dots | |
| Background color | white | |
| Light intensity typ. | 80 cd | |
| Viewing range (height) | 19.18 mm | |
| type of backlight | OLED | |
| Light intensity min. | 60 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
