DEP 20401-W | Display Elektronik

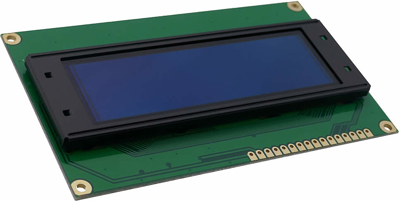

OLED display, 4 x 20 character, 98 x 60 x 10 mm, white, Display Elektronik DEP 20401-W
Order No.: 71S217
EAN: 4099879007346
MPN:
DEP 20401-W
Unit Price (€ / pc.)
43.7087 € *
Standard delivery time from the manufacturer is: 1 Week
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 77 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Height | 60 mm | |
| Technology | OLED | |
| Shell size | 98 x 60 x 10 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 98 mm | |
| Lifetime | 50.000 hours | |
| Display | 4 x 20 character | |
| Background color | white | |
| Character set | English-Japanese, English-European, English-Cyrillic | |
| Light intensity typ. | 80 cd | |
| Viewing range (height) | 25.2 mm | |
| type of backlight | OLED | |
| Character height | 4.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
