DEP 20203-Y | Display Elektronik

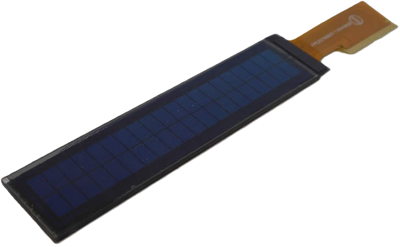

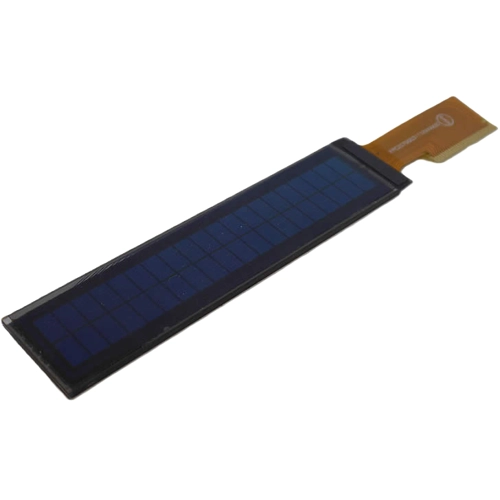

OLED display, 2 x 20 character, 84.5 x 19.28 x 2.05 mm, yellow, Display Elektronik DEP 20203-Y
Order No.: 73S0198
EAN: 4099891977634
MPN:
DEP 20203-Y
Unit Price (€ / pc.)
21.1463 € *
Standard delivery time from the manufacturer is: 1 Week
OLED Module, DEP 20203-Y, Display Elektronik
Features
- View Area: 75.52 x 13.52 mm
- Duty: 1/16
- Emitting Color: OLED, Yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 75.52 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Height | 19.28 mm | |
| Technology | OLED | |
| Thickness | 2.05 mm | |
| Shell size | 84.5 x 19.28 x 2.05 mm | |
| IC controller/driver | SSD1311 compatible | |
| MPU interface | 8-Bit-MCU, I²C, SPI | |
| Width | 84.5 mm | |
| Lifetime | 50.000 hours | |
| Display | 2 x 20 character | |
| Background color | yellow | |
| Character set | English-Japanese, English-European, English-Cyrillic | |
| Light intensity typ. | 130 cd | |
| Viewing range (height) | 13.52 mm | |
| type of backlight | OLED | |
| Light intensity min. | 120 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
