DEP 160128A1-RGB | Display Elektronik

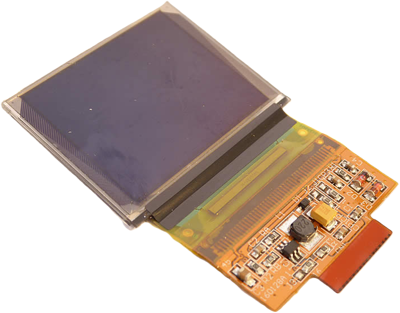

OLED display, 160 x 128 dots, 42.7 x 65 x 2.03 mm, RGB, Display Elektronik DEP 160128A1-RGB
Order No.: 73S0248
EAN: 4099891978136
MPN:
DEP 160128A1-RGB
Unit Price (€ / pc.)
33.4271 € *
Standard delivery time from the manufacturer is: 1 Week
Standard OLED Display, DEP 160128A1-RGB, Display Elektronik
Features
- Full-Colour-RGB
- SSD1353 Controller
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 160 x 128 dots | |
| Shell size | 42.7 x 65 x 2.03 mm | |
| Technology | OLED | |
| IC controller/driver | SSD1353 compatible | |
| MPU interface | 8-Bit-MCU, SPI | |
| Light intensity min. | 60 cd | |
| Light intensity typ. | 80 cd | |
| Viewing area (width) | 35.02 mm | |
| Viewing range (height) | 28.01 mm | |
| type of backlight | OLED | |
| Background color | RGB | |
| Lifetime | 16.000 hours | |
| Thickness | 2.03 mm | |
| Width | 42.7 mm | |
| Height | 33.4 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
