DEP 128128C3-RGB (A-TOUCH) | Display Elektronik

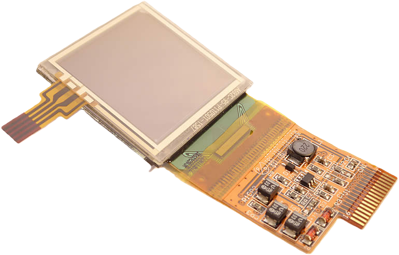

OLED Display DEP 128128C3-RGB (A-TOUCH)1,5" - 128x128, PM-OLED, Full-Colour-RGB, 4-Wire-R
Order No.: 73S0240
EAN: 4099891978051
MPN:
DEP 128128C3-RGB (A-TOUCH)
Unit Price (€ / pc.)
39.6151 € *
Standard delivery time from the manufacturer is: 1 Week
Standard OLED Display, DEP 128128C3-RGB (A-TOUCH), Display Elektronik
Features
- Full-Colour-RGB
- SSD1351 Controller
Technical specifications
| max. operating temperature | 70 °C | |
| Height | 33.5 mm | |
| IC controller/driver | SSD1351 compatible | |
| Display | 128 x 128 character | |
| Lifetime | 14.000 hours | |
| Viewing range (height) | 26.86 mm | |
| Viewing area (width) | 26.86 mm | |
| type of backlight | OLED | |
| Width | 33.5 mm | |
| Thickness | 2.61 mm | |
| Technology | OLED | |
| Version | with touch function | |
| min. operating temperature | -40 °C | |
| Shell size | 33.5 x 71.5 x 2.1 mm | |
| Light intensity typ. | 70 cd | |
| Background color | RGB | |
| MPU interface | 8-Bit-MCU |
Download
Logistics
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
