DEP 128064I-W | Display Elektronik

Name: OLED display, 128 x 64 dots, 42.04 x 27.22 x 1.41 mm, white, Display Elektronik DEP 128064I-W
Brand: Display Elektronik
SKU: 73S0231
Availability: InStock

OLED display, 128 x 64 dots, 42.04 x 27.22 x 1.41 mm, white, Display Elektronik DEP 128064I-W

Order No.: 73S0231

EAN: 4099891977962

MPN:

DEP 128064I-W

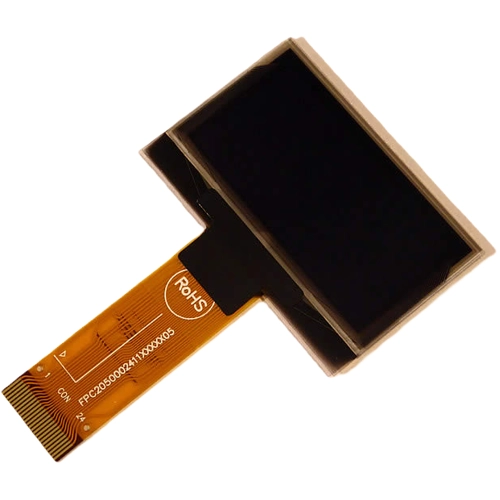

Image may differ

Key Specification:

Display 128 x 64 dots

Shell size 42.04 x 27.22 x 1.41 mm

Technology OLED

IC controller/driver SSD1309 compatible

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

17.3978 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

3,897.11 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

OLED Module, DEP 128064I-W, Display Elektronik

Features

Active Area: 35.05 × 17.51 mm
Display Mode: Passive Matrix
Duty: 1/64
Display Color: Monochrome (White)

Technical specifications

Filter	Property	Value
	Viewing area (width)	35.05 mm
	max. operating temperature	80 °C
	min. operating temperature	-40 °C
	Height	27.22 mm
	Technology	OLED
	Thickness	1.41 mm
	Shell size	42.04 x 27.22 x 1.41 mm
	IC controller/driver	SSD1309 compatible
	MPU interface	8-Bit-MCU, I²C, SPI
	Width	42.04 mm
	Lifetime	20.000 hours
	Display	128 x 64 dots
	Background color	white
	Light intensity typ.	120 cd
	Viewing range (height)	17.51 mm
	type of backlight	OLED
	Light intensity min.	100 cd
