DEP 128064F1-Y | Display Elektronik

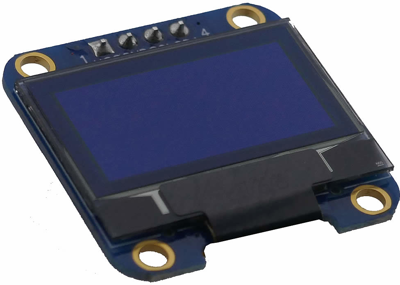

OLED Display DEP 128064F1-Y1,0" - 128x64, PM-OLED, Yellow
Order No.: 73S0230
EAN: 4099891977955
MPN:
DEP 128064F1-Y
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 1 Week
OLED Module, DEP 128064F1-Y, Display Elektronik
Features
- Active Area: 21.74 x 10.86 mm
- Display Mode: Passive Matrix
- Duty: 1/64
- Display Color: Monochrome (Yellow)
Technical specifications
| max. operating temperature | 80 °C | |
| Height | 27.3 mm | |
| IC controller/driver | SSD1306BZ compatible | |
| Light intensity min. | 60 cd | |
| Display | 128 x 64 character | |
| Lifetime | 50.000 hours | |
| Viewing range (height) | 10.86 mm | |
| Viewing area (width) | 21.74 mm | |
| type of backlight | OLED | |
| Width | 27.3 mm | |
| Thickness | 2.37 mm | |
| Technology | OLED | |
| min. operating temperature | -40 °C | |
| Shell size | 27.3 x 27.3 x 2.37 mm | |
| Light intensity typ. | 80 cd | |
| Background color | yellow | |
| MPU interface | I²C |
Download
Logistics
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
