DEP 128064F1-W | Display Elektronik

Name: OLED display, 128 x 64 dots, 27.3 x 27.3 x 2.37 mm, white, Display Elektronik DEP 128064F1-W
Brand: Display Elektronik
SKU: 73S0229
Availability: InStock

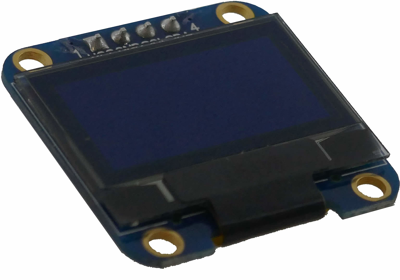

OLED display, 128 x 64 dots, 27.3 x 27.3 x 2.37 mm, white, Display Elektronik DEP 128064F1-W

Order No.: 73S0229

EAN: 4099891977948

MPN:

DEP 128064F1-W

Image may differ

Key Specification:

Display 128 x 64 dots

Shell size 27.3 x 27.3 x 2.37 mm

Technology OLED

IC controller/driver SSD1306BZ compatible

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.0436 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

301.31 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

OLED Module, DEP 128064F1-W, Display Elektronik

Features

Active Area: 21.74 x 10.86 mm
Display Mode: Passive Matrix
Duty: 1/64
Display Color: White

Technical specifications

Filter	Property	Value
	Lifetime	20.000 hours
	Viewing area (width)	21.74 mm
	max. operating temperature	80 °C
	Technology	OLED
	Shell size	27.3 x 27.3 x 2.37 mm
	Background color	white
	type of backlight	OLED
	Viewing range (height)	10.86 mm
	Light intensity typ.	80 cd
	Light intensity min.	60 cd
	MPU interface	I²C
	IC controller/driver	SSD1306BZ compatible
	min. operating temperature	-40 °C
	Display	128 x 64 dots
	Width	27.3 mm
	Thickness	2.37 mm
	Height	27.3 mm
