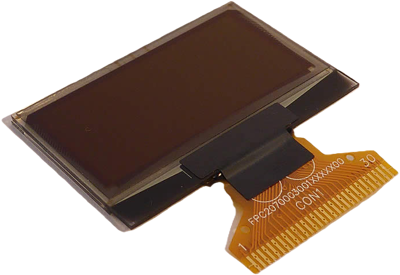

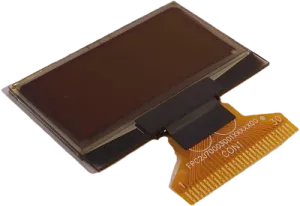

DEP 128064D-Y | Display Elektronik
OLED display, 128 x 64 dots, 34.5 x 23 x 1.65 mm, yellow, Display Elektronik DEP 128064D-Y
Order No.: 73S0228
EAN: 4099891977931
MPN:
DEP 128064D-Y
Unit Price (€ / pc.)
11.4359 € *
Standard delivery time from the manufacturer is: 1 Week
OLED Module, DEP 128064D-Y, Display Elektronik
Features
- Active Area: 29.42 x 14.20 mm
- Display Mode: Passive Matrix
- Duty: 1/64
- Display Color: Yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 29.42 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Height | 23 mm | |
| Technology | OLED | |
| Thickness | 1.65 mm | |
| Shell size | 34.5 x 23 x 1.65 mm | |
| IC controller/driver | SH1106G compatible | |
| MPU interface | 8-Bit-MCU, I²C, SPI | |
| Width | 34.5 mm | |
| Lifetime | 50.000 hours | |
| Display | 128 x 64 dots | |
| Background color | yellow | |
| Light intensity typ. | 120 cd | |
| Viewing range (height) | 14.2 mm | |
| type of backlight | OLED | |
| Light intensity min. | 100 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
