DEP 096032C-W | Display Elektronik

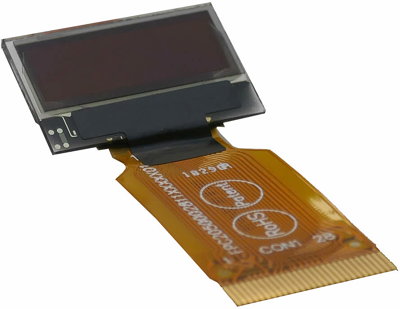

OLED Display DEP 096032C-W0,7" - 96x32, PM-OLED, White
Order No.: 73S0210
EAN: 4099891977757
MPN:
DEP 096032C-W
Unit Price (€ / pc.)
6.1880 € *
Standard delivery time from the manufacturer is: 1 Week
OLED Module, DEP 096032C-W, Display Elektronik
Features
- Active Area: 16.298 x 5.418 mm
- Display Mode: Passive Matrix
- Display Color: OLED, White
Technical specifications
| max. operating temperature | 70 °C | |
| Height | 12.32 mm | |
| IC controller/driver | SSD1305 compatible | |
| Light intensity min. | 60 cd | |
| Display | 96 x 32 character | |
| Lifetime | 20.000 hours | |
| Viewing range (height) | 5.42 mm | |
| Viewing area (width) | 16.3 mm | |
| type of backlight | OLED | |
| Width | 19.8 mm | |
| Thickness | 1.21 mm | |
| Technology | OLED | |
| min. operating temperature | -40 °C | |
| Shell size | 19.8 x 12.32 x 1.21 mm | |
| Light intensity typ. | 80 cd | |
| Background color | white | |
| MPU interface | 8-Bit-MCU, I²C, SPI |
Download
Logistics
| Customs tariff number | 85249200 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
