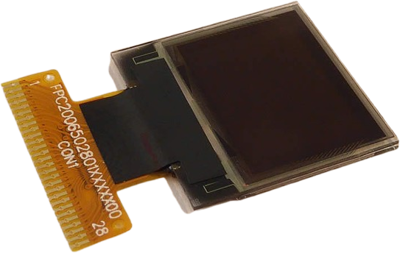

DEP 064048A-Y | Display Elektronik

Name: OLED display, 64 x 48 dots, 18.46 x 18.1 x 1.3 mm, yellow, Display Elektronik DEP 064048A-Y
Brand: Display Elektronik
SKU: 73S0204
Availability: InStock

OLED display, 64 x 48 dots, 18.46 x 18.1 x 1.3 mm, yellow, Display Elektronik DEP 064048A-Y

Order No.: 73S0204

EAN: 4099891977696

MPN:

DEP 064048A-Y

Image may differ

Key Specification:

Display 64 x 48 dots

Shell size 18.46 x 18.1 x 1.3 mm

Technology OLED

IC controller/driver SSD1306BZ compatible

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.1404 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

4,814.07 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

OLED Module, DEP 064048A-Y, Display Elektronik

Features

Active Area: 13.42 x 10.06 mm
Display Mode: Passive Matrix
Display Color: Yellow

Technical specifications

Filter	Property	Value
	Lifetime	50.000 hours
	Light intensity typ.	150 cd
	Light intensity min.	120 cd
	max. operating temperature	70 °C
	IC controller/driver	SSD1306BZ compatible
	Shell size	18.46 x 18.1 x 1.3 mm
	MPU interface	8-Bit-MCU, I²C, SPI
	Technology	OLED
	Viewing range (height)	10.06 mm
	Width	18.46 mm
	Height	18.1 mm
	type of backlight	OLED
	Viewing area (width)	13.42 mm
	Thickness	1.3 mm
	min. operating temperature	-40 °C
	Background color	yellow
	Display	64 x 48 dots
