DEP 064032A-W | Display Elektronik

Name: OLED display, 64 x 32 dots, 14.5 x 11.6 x 1.26 mm, white, Display Elektronik DEP 064032A-W
Brand: Display Elektronik
SKU: 73S0202
Availability: InStock

OLED display, 64 x 32 dots, 14.5 x 11.6 x 1.26 mm, white, Display Elektronik DEP 064032A-W

Order No.: 73S0202

EAN: 4099891977672

MPN:

DEP 064032A-W

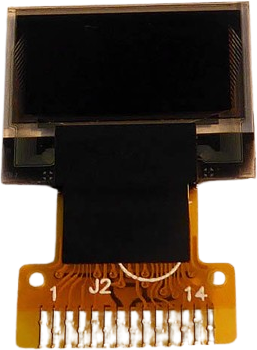

Image may differ

Key Specification:

Display 64 x 32 dots

Shell size 14.5 x 11.6 x 1.26 mm

Technology OLED

IC controller/driver SSD1306BZ compatible

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.0817 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

3,714.35 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

OLED Module, DEP 064032A-W, Display Elektronik

Features

Active Area: 11.18 x 5.58 mm
Display Mode: Passive Matrix
Display Color: White

Technical specifications

Filter	Property	Value
	Viewing area (width)	11.18 mm
	max. operating temperature	70 °C
	min. operating temperature	-40 °C
	Height	11.6 mm
	Technology	OLED
	Thickness	1.26 mm
	Shell size	14.5 x 11.6 x 1.26 mm
	IC controller/driver	SSD1306BZ compatible
	MPU interface	SPI
	Width	14.5 mm
	Lifetime	20.000 hours
	Display	64 x 32 dots
	Background color	white
	Light intensity typ.	180 cd
	Viewing range (height)	5.58 mm
	type of backlight	OLED
	Light intensity min.	160 cd
