DEM 40492 SYH-PY | Display Elektronik
LCD display, 40 x 4 character, STN yellow/green, viewing area: 253.8 x 56.6 mm, DEM 40492 SYH-PY
Order No.: 73S0015
EAN: 4099891975807
MPN:
DEM 40492 SYH-PY
Unit Price (€ / pc.)
105.2555 € *
Standard delivery time from the manufacturer is: 1 Week

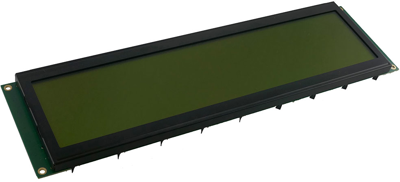

LCD Module, DEM 40492 SYH-PY, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- Backlight Color: LED, Lightguide, Yellow-Green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 77.5 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing area (width) | 253.8 mm | |
| Display | 40 x 4 character | |
| type of backlight | LED | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Thickness | 11.2 mm | |
| Width | 288.3 mm | |
| Character height | 8.48 mm | |
| Viewing range (height) | 56.6 mm | |
| Technology | STN yellow/green | |
| Image | positive | |
| Character set | English-Japanese | |
| Background color | yellow/green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
