DEM 40271 SYH-LY | Display Elektronik

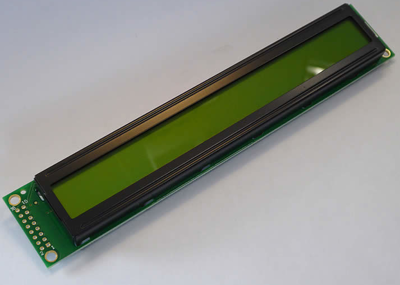

Alphanumeric display, 2 x 40 character, STN yellow/green, viewing area: 155.1 x 16 mm, DEM 40271 SYH-LY
Order No.: 71S347
EAN: 4099879004048
MPN:
DEM 40271 SYH-LY
Unit Price (€ / pc.)
28.4529 € *
Available: 40 pcs.
Total Price:
28.45 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4529 €
4 pcs.
26.9654 €
8 pcs.
25.6445 €
20 pcs.
24.4426 €
100 pcs.
23.6929 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD-Module, DEM 24252 SYH-LY, Display Elektronik
Features
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Temperature (-20 °C to 70 °C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 155.1 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 33.5 mm | |
| Technology | STN yellow/green | |
| Thickness | 11.6 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 182 mm | |
| Display | 2 x 40 character | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 16 mm | |
| type of backlight | LED | |
| Character height | 5.69 mm |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
