DEM 40271 FGX | Display Elektronik
LCD display, 40 x 2 character, FSTN, viewing area: 155.1 x 16 mm, DEM 40271 FGX
Order No.: 73S0013
EAN: 4099891975784
MPN:
DEM 40271 FGX
Unit Price (€ / pc.)
24.395 € *
Standard delivery time from the manufacturer is: 1 Week

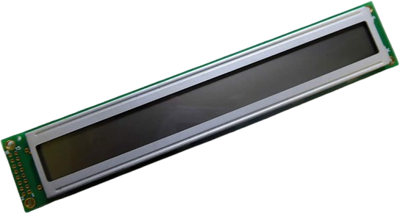

LCD Module, DEM 40271 FGX, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- VLCD Adjustable for best contrast: 4.6 Volt
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 155.1 mm | |
| max. operating temperature | 75 °C | |
| min. operating temperature | -35 °C | |
| Height | 33.5 mm | |
| Technology | FSTN | |
| Thickness | 7.1 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 182 mm | |
| Display | 40 x 2 character | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 16 mm | |
| type of backlight | without | |
| Character height | 5.69 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
