DEM 40271 FGH-PW | Display Elektronik
Alphanumeric display, 40 x 2 character, FSTN, viewing area: 155.1 x 155.1 mm, DEM 40271 FGH-PW
Order No.: 71S722
EAN: 4099879004536
MPN:
DEM 40271 FGH-PW
Unit Price (€ / pc.)
49.5397 € *
Standard delivery time from the manufacturer is: 1 Week

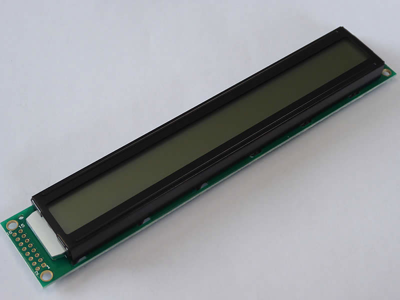

LCD module, DEM 40271 FGH-PW, Display Elektronik
FSTN Transflective Positive Mode.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 155.1 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 33.5 mm | |
| Technology | FSTN | |
| Thickness | 14.5 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 182 mm | |
| Display | 40 x 2 character | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 155.1 mm | |
| type of backlight | LED | |
| Character height | 5.69 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 42 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
