DEM 256128A SBH-PW-N | Display Elektronik

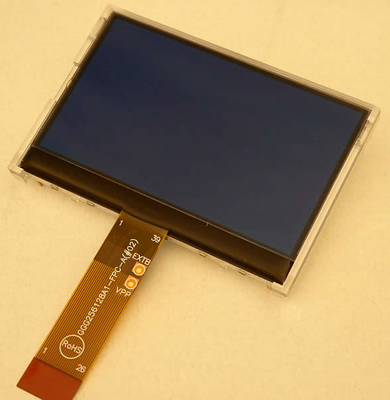

Graphic mono LCD display, 256 x 128 character, STN blue, viewing area: 70.7 x 38.8 mm, DEM 256128A SBH-PW-N
Order No.: 71S856
EAN: 4099879005113
MPN:
DEM 256128A SBH-PW-N
Unit Price (€ / pc.)
23.0384 € *
Standard delivery time from the manufacturer is: 1 Week
LCD module, DEM 256128A SBH-PW-N, Display Elektronik
STN-BLUE Transmissive Negative Mode.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Background color | white | |
| Viewing area (width) | 70.7 mm | |
| Thickness | 6.5 mm | |
| Image | negative | |
| Technology | STN blue | |
| Width | 80 mm | |
| Height | 54 mm | |
| IC controller/driver | ST75256 | |
| Brightness | 1050 cd/m² | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | LED | |
| Display | 256 x 128 character | |
| Viewing range (height) | 38.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 30 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
