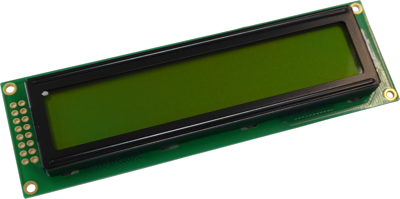

DEM 24252 SYH-LY | Display Elektronik
Alphanumeric display, 2 x 24 character, STN yellow/green, viewing area: 94.4 x 18.2 mm, DEM 24252 SYH-LY
Order No.: 71S346
EAN: 4099879004031
MPN:
DEM 24252 SYH-LY
Unit Price (€ / pc.)
21.2177 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DEM 24251 SYH-PY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Temperature (-20 °C to 70 °C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| type of backlight | LED | |
| MPU interface | 8-Bit-MCU | |
| Thickness | 10.6 mm | |
| Display | 2 x 24 character | |
| Background color | yellow | |
| Image | positive | |
| Technology | STN yellow/green | |
| Height | 36 mm | |
| max. operating temperature | 70 °C | |
| Character set | English-Japanese | |
| IC controller/driver | HD44780 compatible | |
| Character height | 6.35 mm | |
| Viewing area (width) | 94.4 mm | |
| Viewing range (height) | 18.2 mm | |
| min. operating temperature | -20 °C | |
| Width | 118 mm |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
