DEM 240128D2 FGH-PW (A-TOUCH) | Display Elektronik

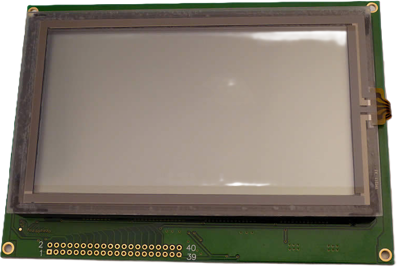

Graphic display, 240 x 128 character, FSTN, viewing area: 114 x 64 mm, DEM 240128D2 FGH-PW (A-TOUCH)
Order No.: 73S0147
EAN: 4099891977122
MPN:
DEM 240128D2 FGH-PW (A-TOUCH)
Unit Price (€ / pc.)
82.1576 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 240128D2 FGH-PW (A-TOUCH), Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power supply for logic: 5.0 V
- Backlight Color: White
- RoHS Conformed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Height | 104 mm | |
| IC controller/driver | UCi6963 | |
| Display | 240 x 128 character | |
| Image | positive | |
| Viewing range (height) | 64 mm | |
| Viewing area (width) | 114 mm | |
| type of backlight | LED | |
| Width | 144 mm | |
| Thickness | 12.6 mm | |
| Technology | FSTN | |
| Version | with touch function | |
| min. operating temperature | -20 °C | |
| Background color | white | |
| MPU interface | 8-Bit-MCU |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
