DEM 240128A1 FGH | Display Elektronik

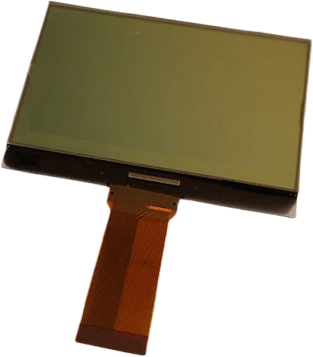

Graphic display, 240 x 128 character, FSTN, viewing area: 92 x 53 mm, DEM 240128A1 FGH
Order No.: 73S0140
EAN: 4099891977054
MPN:
DEM 240128A1 FGH
Unit Price (€ / pc.)
24.395 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 240128A1 FGH, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power supply voltage: 3.0 V
- Driver IC: ST7529A
- RoHS Conformed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Height | 65 mm | |
| IC controller/driver | ST7529A | |
| Display | 240 x 128 character | |
| Image | positive | |
| Viewing range (height) | 53 mm | |
| Viewing area (width) | 92 mm | |
| type of backlight | without | |
| Width | 96 mm | |
| Thickness | 2.75 mm | |
| Technology | FSTN | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU, SPI |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
