DEM 240064D SBH-PW-N | Display Elektronik
Graphic display, 240 x 64 character, STN blue, viewing area: 111 x 37 mm, DEM 240064D SBH-PW-N
Order No.: 73S0134
EAN: 4099891976996
MPN:
DEM 240064D SBH-PW-N
Unit Price (€ / pc.)
26.18 € *
Standard delivery time from the manufacturer is: 1 Week

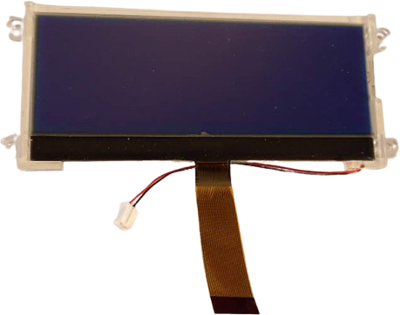

LCD Module, DEM 240064D SBH-PW-N, Display Elektronik
Features
- LCD mode: FSTN, Reflective, Positive
- Viewing direction: 6 o’clock
- Power Operation: 3.3 Volt
- Backlight: LED, White, Lightguide
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 55.1 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing area (width) | 111 mm | |
| Display | 240 x 64 character | |
| type of backlight | LED | |
| IC controller/driver | UC1608 | |
| MPU interface | 8-Bit-MCU | |
| Thickness | 5.8 mm | |
| Width | 120.2 mm | |
| Viewing range (height) | 37 mm | |
| Technology | STN blue | |
| Image | negative | |
| Background color | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
