DEM 240064C2 SYH-LY | Display Elektronik
Graphic display, 240 x 64 character, STN yellow/green, viewing area: 135 x 40 mm, DEM 240064C2 SYH-LY
Order No.: 73S0131
EAN: 4099891976965
MPN:
DEM 240064C2 SYH-LY
Unit Price (€ / pc.)
57.7745 € *
Standard delivery time from the manufacturer is: 1 Week

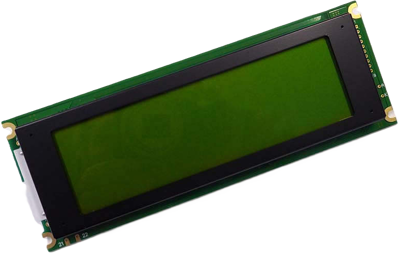

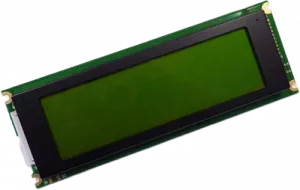

LCD Module, DEM 240064C2 SYH-LY, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power supply for logic: 5.0 Volt
- RoHS Conformed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 135 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 65 mm | |
| Technology | STN yellow/green | |
| Thickness | 9.6 mm | |
| IC controller/driver | UCi6963 | |
| MPU interface | 8-Bit-MCU | |
| Width | 180 mm | |
| Display | 240 x 64 character | |
| Background color | yellow/green | |
| Image | positive | |
| Viewing range (height) | 40 mm | |
| type of backlight | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
